Evolution is a versatile and highly configurable architectural control system designed for both lighting and peripheral management.

Evolution is uniquely adaptable, making it an ideal choice for use in a vast number of applications including modern smart homes, shopping centres, restaurants, hotels, cruise ships, boardrooms, hospitality suites and offices. System features include RS-232, DMX, DSI and 0/1-10V controls.

A built in astronomical time clock facilitates events triggered at any time of day, linked with sunrise – sunset calculations or by user definable seasons. Any input may control any output with the ability to provide operation of a sequence of events, for example, control of lighting, blind motors, commands to building management systems, colour changing etc.

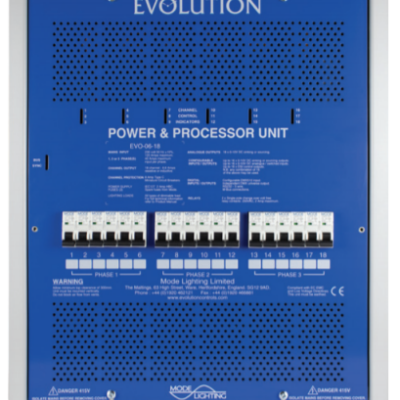

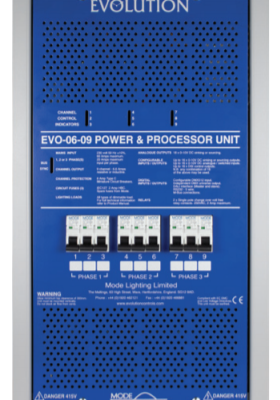

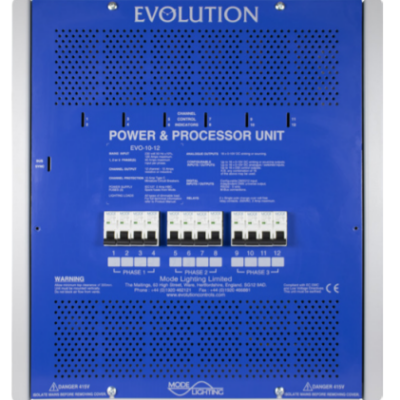

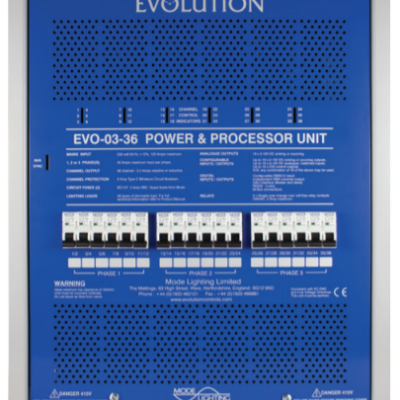

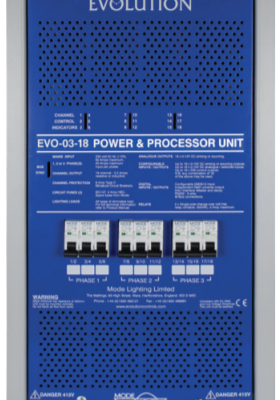

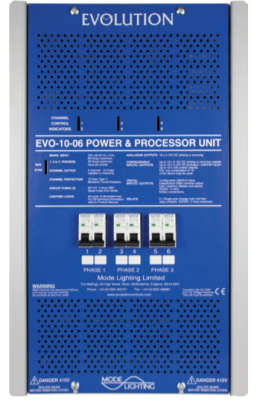

Behind the scenes of every Evolution installation are the Power and Processor Units. These are both dimmer power “brawn” and control “brain”, in a uniquely small enclosure.
Key features
• Dimmable Power Unit.
• Leading Edge Dimming Technology.
• Fully configurable control operation.
• Multi function DSI, DMX, M-BUS, RS-232, 0/1-10V and contact operation.
• Astronomical time clock built in.
• Intelligent self monitoring power supply.
• Factory set default operation for quick installation and testing.
• Individual 8A or 10A Type C MCB Circuit Protection.
• Emergency Fixed Live MCB protected outputs (2 per phase) for maintained emergency supplies.
• DIN rail mounted wiring terminals.
• Supply input 230/240V. 50-60Hz. Single or three phase options.
• Complies with EC EMC and Low Voltage Directives (CE).
• 2 year warranty.
