DLE1205

Description

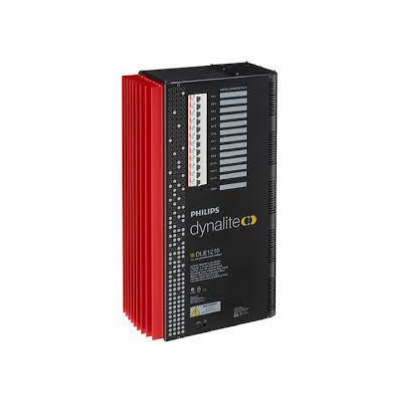

The DLE1205 is a 12 channel leading edge dimmer controller with a maximum load per channel of 5A. It is suitable for use with incandescent and neon light sources, as well as iron core and leading edge electronic transformers.
• Fully rated device — The combination of load capacity and sub-circuit protection delivers a superior solution for small scale commercial applications. • Interference suppression  —  Iron powder core toroidal choke lessens effects of interference from other equipment, such as transformers. • Naturally ventilated — Requires no forced cooling or maintenance. • Soft start and voltage regulation technologies — Protects lamps from over voltage and dramatically improves lamp life, reducing maintenance costs. • Diagnostic functionality — Device Online/ Offline status reporting. • User controls — Incorporates service override switch and three phase indicator LED. Hardware bypass switches are provided for each channel. • Options available — Including circuit breaker trip reporting, earth leakage and overload protection on each channel, provision of two or three pole circuit breakers, or neutral disconnect circuit breakers.
