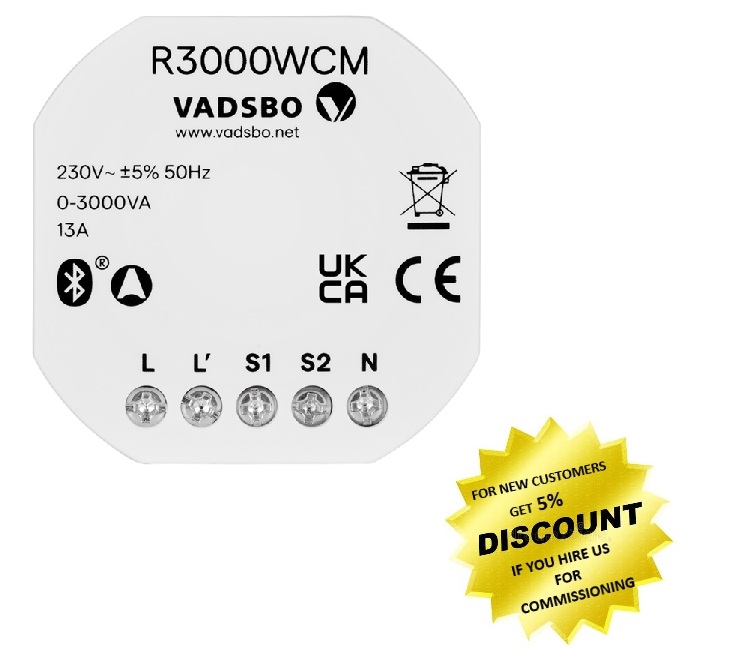

R3000WCM

The Bluetooth Relay R3000WCM is used to switch on and off different load types up to a breaking capacity of 13A (cos φ = 1). The area of usage for a relay is wide, as it can be used for many different load types or loads with a high power, which a traditional phase-cut dimmer can’t handle. This relay, for example, may control everything from industrial luminaries to wall sockets or electrical motors.

R3000WCM is IP20 and equipped with two inputs for retractive switches. With two inputs for retractive switches, you can for example have one switch control the relay itself and the other switch control a scene in the Casambi app.

R3000WCM comes with equipped with two different profiles to choose from which will make the relay suit the need:

• R3000WCM ON/OFF: The relay is activated/deactivated by pressing the button.
• R3000WCM ON WHILE PRESS: The relay stays active while the button is held pressed.
